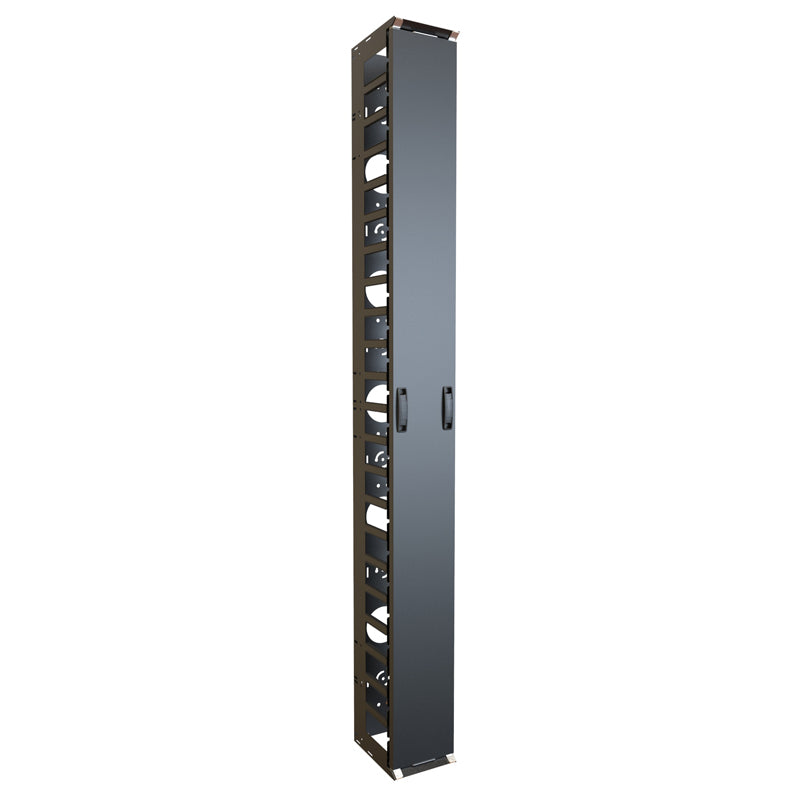

Hammond FRCM Series, Vertical Finger Cable Manager w/door 44U 10"W 13.64"D

Specification Sheet

Hammond Vertical Finger Cable Manager with Door FRCM Series

The vertical Fingered Rack Cable Manager (FRCM) from Hammond Mfg can be used for managing sensitive fiber, large bundles of network and coax cables combined into a structurally strong vertical cable manager. The double-hinged/reversible slam-latch door is simple to install and is visually pleasing.

Features:

• Sturdy T-shape steel high-density fingers are spaced at 2RU and provide support for large cable bundles and heavy gauge cables.
• Separated space easily allows for cables to be added or removed without fishing the cable.
• Includes clip-on plastic finger guards (ships loose) for 1.25in cable bend radius.
• The Slam-latch door is reversible and can be opened from either side or removed with ease.
• Includes mounting provisions for optional Cable Spools, dividers for slack management.
• Also includes mounting for up to eight (8) low-density rear management rings.
• Hardware included for securing to rack.

Specifications:

• The manager body is constructed of 16-gauge steel while manager door is constructed of 18-gauge steel.
• Compatible with Hammond DNRRHDW, DC4R, DRZ4, RB-2P and RB-2PA Series of open frame racks.
• Finished in textured RAL9005 black powder paint finish.
• TAA-compliant for GSA Schedule purchases.
• RoHS and REACH compliant.
• Manufactured in North America.
