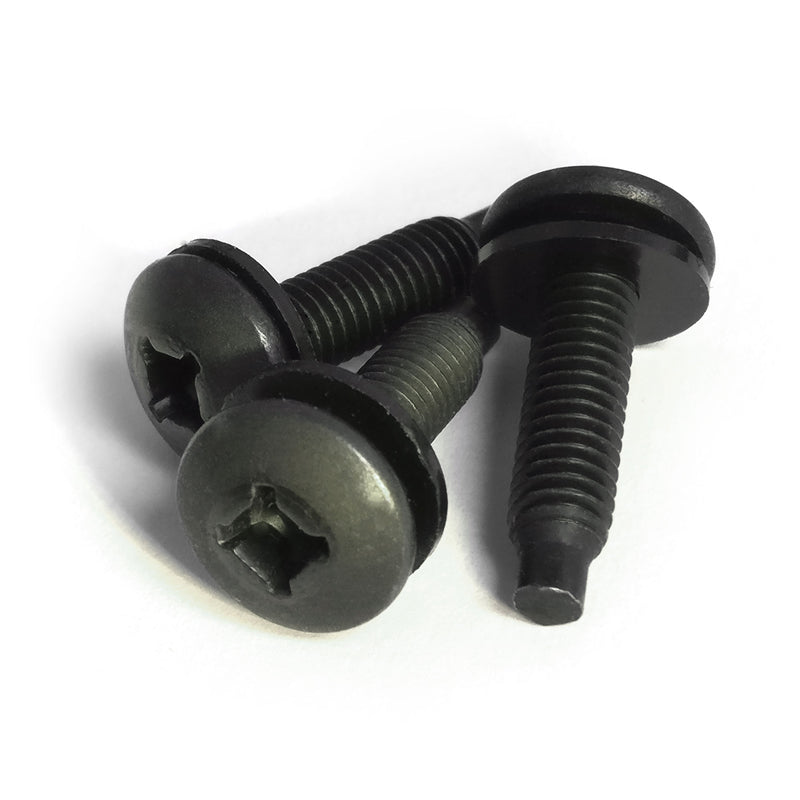

Hammond SCREW Series, 12-24 Quadrex truss with Pilot Point, 50pk

SCREW1224-50 Rack Screws with Pilot Point SCREW Series

Don't get screwed! Our screw pack features a convenient jar, starting point and factory-installed washer. If you've encountered difficult part numbers, this product is for you. The SCREW series offers packs of rack mounting screws designed for ease of installation. Factory hardened, these screws are strip-resistant and are available in a variety of convenient quantities.

Features

• Available in 10-32, 12-24 and M6 threading.
• Heat-treated to resist stripping.
• Self-guiding pilot/dog point.
• Includes factory-installed nylon washer.
• Finished in black oxide.

Specifications

• Quadrex truss oval head screw.
  • ø 0.186 Diameter.
  • 0.75" Length.
  • Machine screw with full dog point.
  • UNF-2A Threaded.
  • Heat-treated low-carbon steel to ANSI B18.6.3 standard.

• Captive flat washer constructed of black Nylon 6/6.
  • Outside Diameter: 0.429"-0.439"
  • Thickness: 0.030"-0.040"
