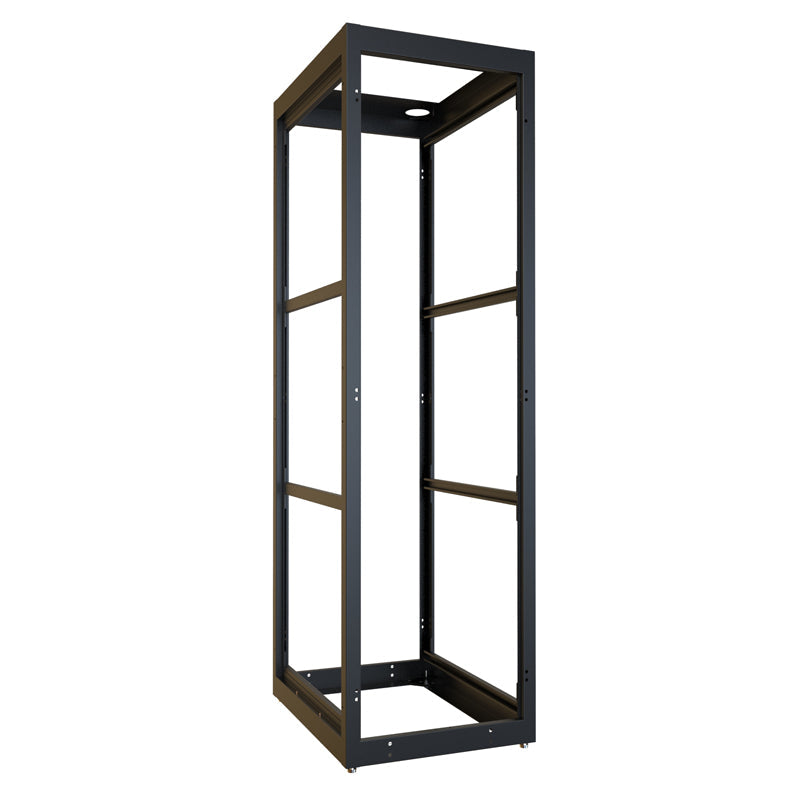

Hammond, C4 Series, Modular Server Cabinet System 29.5`D 30`W 44U

Modular Server Rack Cabinet C4 Series

Available Options Include:

• 24U, 42U and 44U mounting heights.
• 24" and 30" overall frame widths.
  • 24” wide frame includes generous cabling space and four (4) 3.5” wide cable entry holes on the top.
  • 30” wide frame includes extra generous cabling space and support for up to four optional vertical cable managers
• 31.5", 36" and 42" overall frame depths.
• All frames include four (4) levelling feet and support optional casters.
• 19" and 23" mounting rails are available in square-hole punched or drilled and tapped 10-32.
• Flush-mounted doors with quarter-turn lock available in solid, tinted window, vented full or split/barn.
• Side panels are available in both solid and vented for thermal induction.
• One (1) interchangeable top panel opening; available in solid, vented, fan tops with or without fans installed.
• One (1) interchangeable bottom panel opening, available in solid.
• Vertical cable managers are available in-tray, enclosed metal or fingers versions.

Specifications

• Cabinet frame constructed in 14-gauge steel with 12-gauge steel reinforced corner brackets.
• Cabinet doors and side panels constructed in 16-gauge steel.
• 19" mounting rails are constructed in 12-gauge steel (square hole punched) or 10-gauge steel (drilled and tapped 10-32).
  • Rails include rack unit indicators and are Zinc-plated to provide superior surface areas for equipment grounding.
  • C-channel struts provide cabinet strength, ease and flexibility to adjust mounting rails.
• *When assembled by Hammond, the cabinet is UL Listed 2416 load rated for up to 3,000 lbs (1,360 kg). Static Load tested to 12,000 lbs (5,443 kg).
• Seismic rated up to 1,200 lbs (544 kg) of dynamic load with an Ip factor of 1.5 in accordance with the IBC 2018, CBC 2019, NBC 2018, ASCE 7-16 and ASCE 7-10. Requires a seismic bolt-down kit such as the C4K-Z4 (sold separately).
• Grounding studs are provided on the frame as well as side panels and doors. Front and rear studs on cabinet frame conform to PET.
• Finished in textured RAL9005 black powder paint.
• Meets PCI DSS (Payment Card Industry Data Security Standard) compliance requirements.
• TAA-compliant for GSA Schedule purchases.
• RoHS Compliant.
• Manufactured in North America within an ISO 9001:2015 certified facility.
