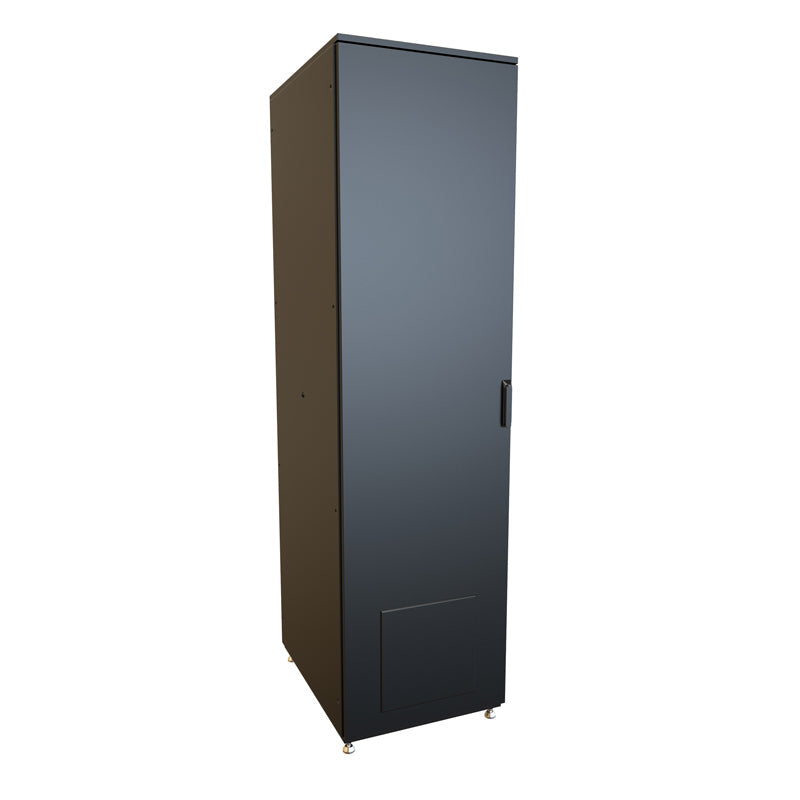

Hammond HDME Series, Type 12 Dust-Tight Server Cabinet 47U 31d

NEMA Rated Dust-Tight Server Cabinet HDME Series

Features

• Front and rear solid doors include an installed gland plate for cooling options. Doors open to 135°. Window door option available.
• Reinforced top panel with provisions for optional HDMELB lifting eye bolts.
• Frames can be joined together with an optional joining kit.
• A black, cellular neoprene gasket provides tight and secure seal protection from moisture, dust and air contaminants.
• Available in 42U and 47U mounting heights.
• Available 24" wide. 31.5" is available as a special order.
• Available in 31.5" and 39.37" overall depths.
• Includes adjustable depth mount rails.

Specifications

• Cabinet frame, doors and side panels are constructed in 14-gauge mild steel.
• Square hole 19" mounting rails are constructed in 12-gauge mild steel, include rack unit indicators, and are Zinc-plated to provide superior surface areas for equipment grounding.
• Tested to nearly double the suggested load rating of 1,500 lbs (680 kg).
• NEMA Rated for UL 508A Type 12 and CSA Type 12. Complies with NEMA Type 12 and IEC 60529 IP54.
• Lift-tested to 900 lbs (408 kg) of equipment load when used with our HDMELB lifting eye bolts.
• Grounding studs are provided on the frame as well as side panels and doors. Front and rear studs on cabinet frame conform to PET.
• Finished in textured RAL9005 black powder paint. Also available in textured light gray upon request.
• Meets PCI DSS (Payment Card Industry Data Security Standard) compliance requirements.
• TAA-compliant for GSA Schedule purchases.
• RoHS Compliant.
• Manufactured in North America within an ISO 9001:2015 certified facility.

Included Components

• Welded steel frame with factory-installed nylon levelling feet, ground studs, and mounting points for optional casters.
• Two (2) pairs of adjustable depth EIA compliant square hole punched mounting rails.
• Two (2) solid removable side panels.
• Two (2) solid doors with
  • one (1) installed gland plate
  • one (1) die-cast locking swing handle
  • Two (2) door keys
• One (1) solid top panel.
• Two (2) bottom panels with gland plates
• Four (4) levelling feet
• Starter pack of CAGKIT1032-50 screws
