Available in three (3) heights
HWF mounts to the wall and sits on the floor supported by levelling feet. The swing-out section is supported by casters.

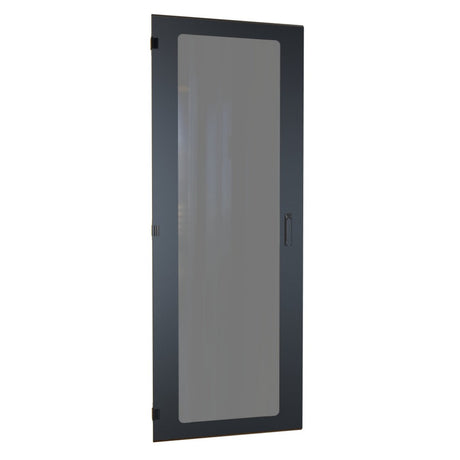

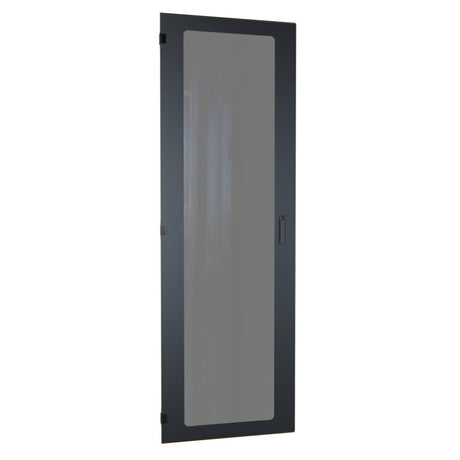

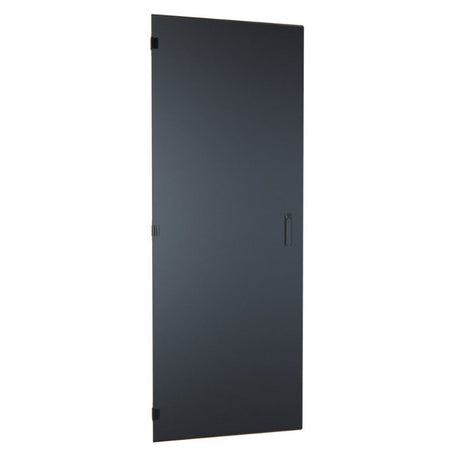

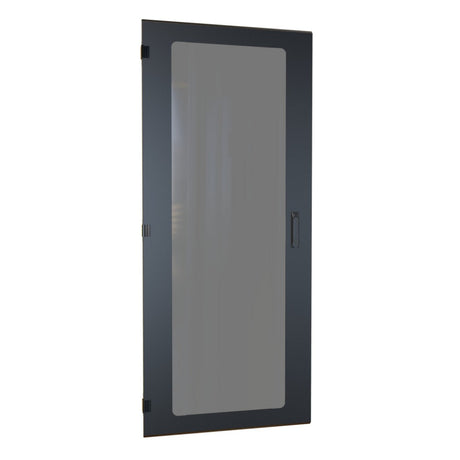

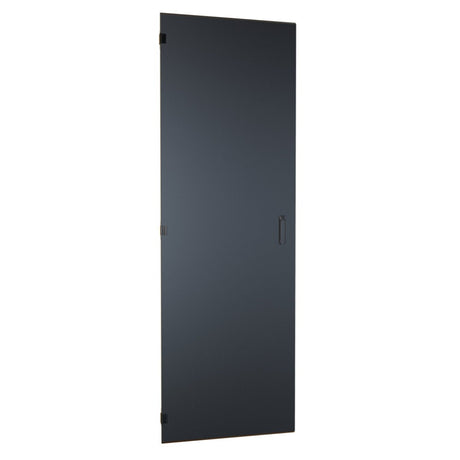

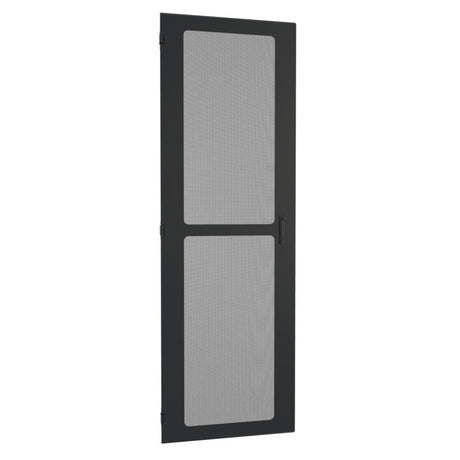

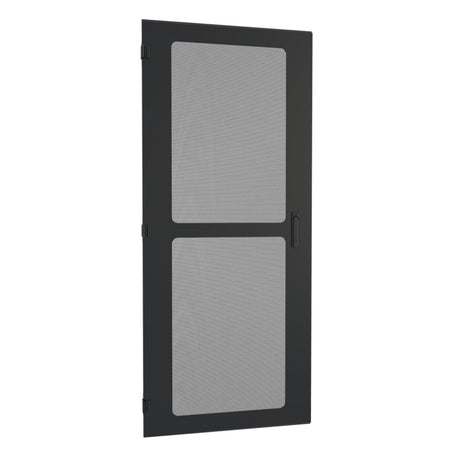

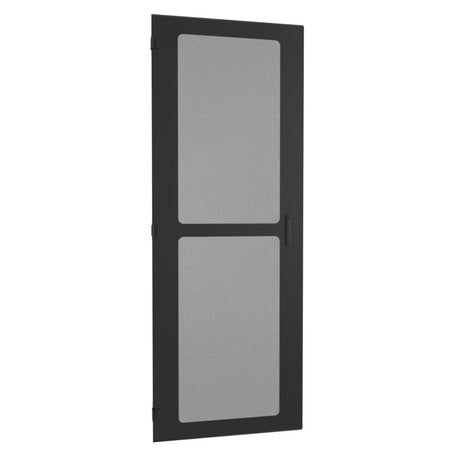

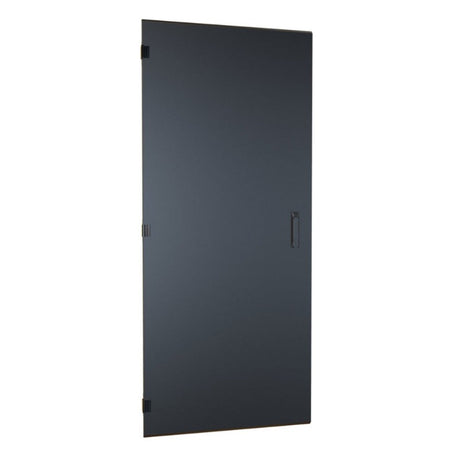

Optional doors install in minutes and are available in a vented, tinted window and solid. Order part RHHK1 for right-hand hinge kit.
The top of the rear section includes a "Bonus" 3U space for optional rack mount fans or accessory mounting.
The main body can be installed to swing from left-to-right or right-to-left. Includes locking twist-latches.
Includes one (1) pair of adjustable depth threaded 10-32 EIA compliant mounting rack rails.
- Thirty (30) inch wide mounting rails include "Bonus" 1U space for optional rack accessories, such as cable management or power bars.
- 10-32 tapped rails are easy to remove on-site and replace with square hole rails (sold separately) if needed.
Includes starter pack of SCREW1032-50 screws and CLPKIT1032-25 clip nuts and screws.

Heavy-duty rear and base are constructed in 14-gauge welded mild steel.
Optional locking doors are constructed in 16-gauge mild steel.
Swing-out cabinet constructed in 16-gauge welded steel and features a spring-hinge pin for easy installation and removal.
2.50” and 2.00” conduit knockouts are located on the side.
4.00", 2.00” conduit knockouts and BNC 0.625” knockouts are located on the top.
Numerous cable management mounting points are included.
Heavy-duty keyhole for wall mounting and levelling feet.
Large openings in the rear for cable access designed for mounting over electrical receptacles.
Dedicated bonding and grounding points that also provide drill-less mounting of electrical utility boxes. Ground Cable Kit sold separately.
UL Listed 2416 load rated for up to 700 lbs (317 kg). Static Load tested to 2,800 lbs (1,270 kg).
Finished in textured RAL9005 black or RAL9003 white powder paint.
Meets PCI DSS (Payment Card Industry Data Security Standard) compliance requirements, when the door is installed.
TAA compliant for GSA Schedule purchases.
RoHS Compliant.
Manufactured in North America within an ISO 9001:2015 certified facility.

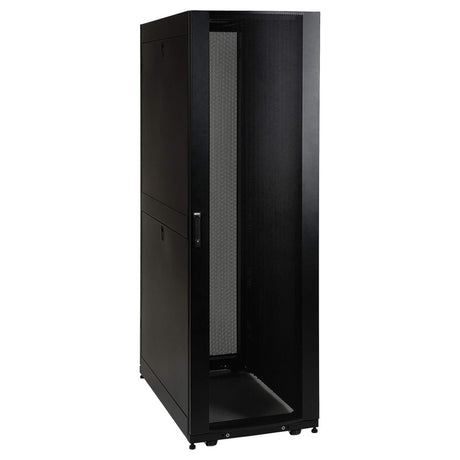

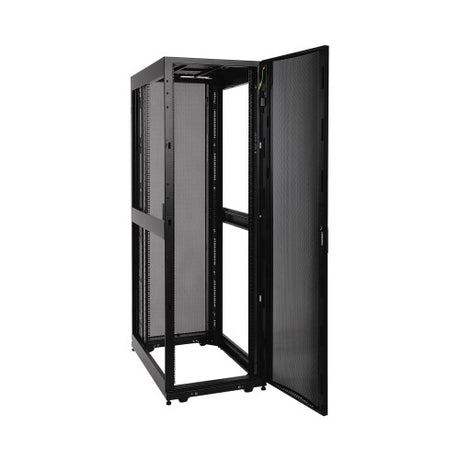

Server Racks and Cabinets
