Description

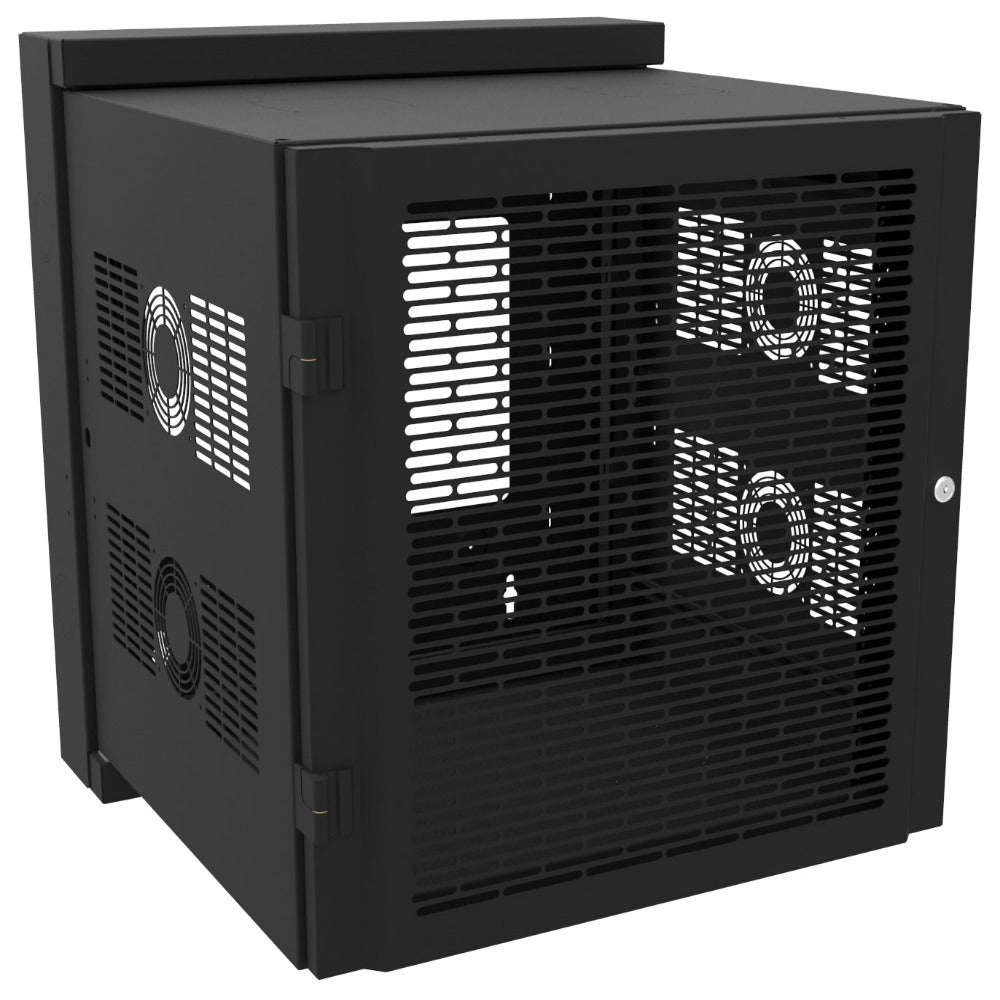

Heavy-Duty Swing-Out Wall Mount Cabinet HWM Series
UL2416 rated to 350 lbs (158 kg). Seismic rated up to 200 lbs (90.72 kg).
Overview
The HWM Wall-Mount Cabinet offers a secure, swing-out storage solution for ICT equipment that is easy to install. With its sleek design, security features, and optional fan kits, it is perfect for public spaces or equipment rooms with limited floor space.
Features
- Available in two (2) depths and four (4) heights.
- All sizes include either vented 63% perforated front door or smoked window front door.
- Center section features:
- Heavy duty spring-hinge pin for easy installation and removal.
- Sides that include two (2) vents and fan grill.
- Can be installed to swing from left-to-right or right-to-left.
- Rear section features:
- The side of the rear section includes 2.50” and 2.00” knockouts.
- The top and bottom of the rear section includes 3.00", 2.00”, 1.38” and 1.12” knockouts.
- Generous cable management lances located on the rear section as well as on mounting rails.
- Mounting points for outlet strips.
- Heavy duty keyhole for wall mounting.
- Large opening in rear for cable access.
- Front locking door and center section keyed the same (optional key available).
Specifications
- 14-gauge welded rear section; 16-gauge center section and doors.
- EIA compliant adjustable depth mounting rails.
- Includes one (1) pair of tapped (10-32) mounting rails.
- Supports multiple pairs of rails in both tapped and square hole options.
- Starter pack of SCREW1032-50 screws.
- Grounding lugs located on top and bottom of the door, center and rear sections.
- UL Listed 2416 load rated for up to 350 lbs (158 kg). Static Load tested to 1,400 lbs (635 kg).
- Rugged sand-textured black powder paint which reduces the look of fingerprints and marks.
- TAA compliant for GSA Schedule purchases.
- RoHS Compliant.
- Manufactured in North America.
