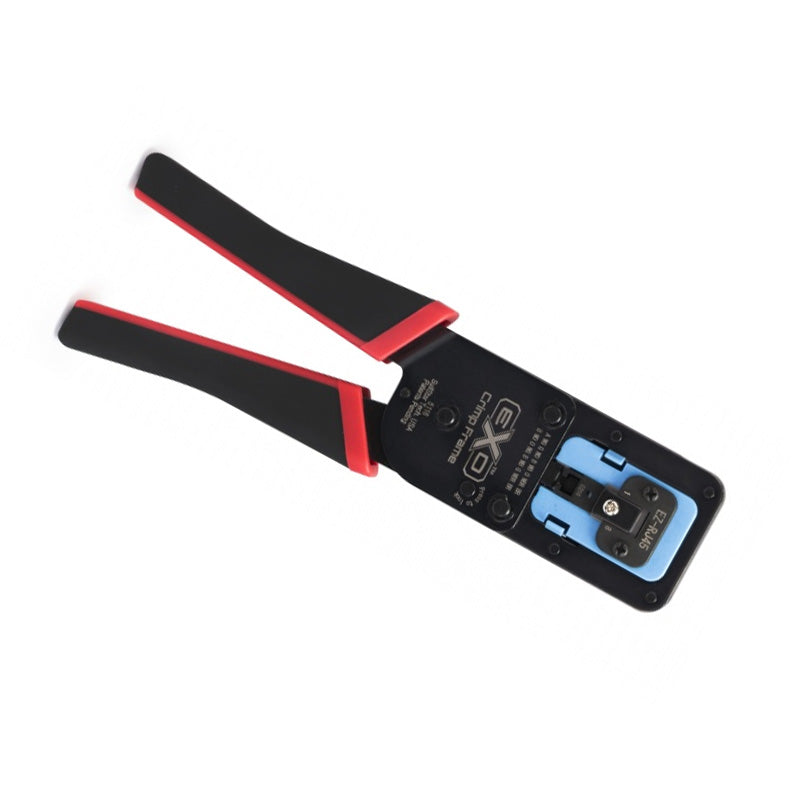

EXO Crimp Frame™ with EZ-RJ45 Die. Clamshell.

100062C

The new ezEX-RJ45™ Termination System provides a solution for terminating larger diameter twisted-pair cables, with conductor sizes up to .048”. The ezEX-RJ45™ connector has a hi-lo stagger design to increase performance and accommodate larger conductors found in Cat5e, Cat6, and Cat6A cables while maintaining the EZ® pass through design. This allows you to verify the wiring sequence before terminating. The new EXO™ professional crimp tool and EXO-EX die set pair with the ezEX-RJ45™; connectors to ensure a flush cut and reliable termination every time. Saving time and money without sacrificing performance on high end jobs.

ezEX-RJ45â„¢ Connectors:

  • 2 connectors for conductors ranging .039" – .048"
  • Pass through design allows for easy verification of wiring sequence
  • One-piece design — bars or liners are not required
  • Rated up to 10 Gigabit for superior performance
  • Works with solid or stranded conductors
  • FCC, RoHS 2 & UL compliant
  • Made in USA

EXO-EX Crimp Tool Frame and Dies:

  • One-step to crimp and flush cut/trim ezEX-RJ45â„¢ conductors
  • Die sets are easily interchangeable
  • Reversible die sets for ambidextrous operation
  • Connectors lock into die set port for easier crimping
  • Push button lock for easy storage
  • Ergonomic Comfort Grip TPR Handles
