Hammond CAGKIT Series, M6 Mounting Screw and Cage Nut Combo 50pk
$68.00
Unit price
/
Unavailable

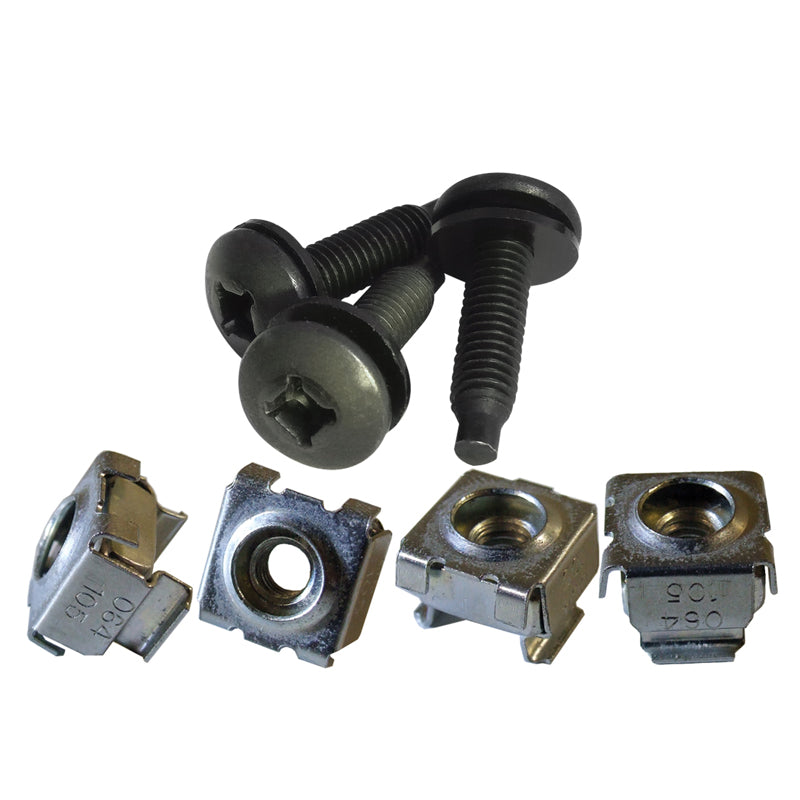

Hammond CAGKIT Series, M6 Mounting Screw and Cage Nut Combo
Quadrex truss oval head screw.
- ø 0.186 Diameter.
- 0.75" Length.
- Machine screw with full dog point.
- UNF-2A Threaded.
- Heat-treated low-carbon steel to ANSI B18.6.3 standard.
Captive flat washer constructed of black Nylon 6/6.
- Outside Diameter: 0.429"-0.439"
- Thickness: 0.030"-0.040"
Cage Nuts
- Constructed of zinc-plated SAE 1050-1065 spring steel.
- 0.375in (9.54mm) square hole punched panel rails.
- Heat-treated through austempering.
- Recommended torque spec 31.4 +/- 20% inch-lbs
- Maximum load rating will vary depending on rail mounting and cabinet load rating.
Couldn't load pickup availability
Hammond CAGKIT Series, M6 Mounting Screw and Cage Nut Combo 50pk
$68.00
Unit price
/
Unavailable
Description
Description
Hammond CAGKIT Series, M6 Mounting Screw and Cage Nut Combo
Quadrex truss oval head screw.
- ø 0.186 Diameter.
- 0.75" Length.
- Machine screw with full dog point.
- UNF-2A Threaded.
- Heat-treated low-carbon steel to ANSI B18.6.3 standard.
Captive flat washer constructed of black Nylon 6/6.
- Outside Diameter: 0.429"-0.439"
- Thickness: 0.030"-0.040"
Cage Nuts
- Constructed of zinc-plated SAE 1050-1065 spring steel.
- 0.375in (9.54mm) square hole punched panel rails.
- Heat-treated through austempering.
- Recommended torque spec 31.4 +/- 20% inch-lbs
- Maximum load rating will vary depending on rail mounting and cabinet load rating.
