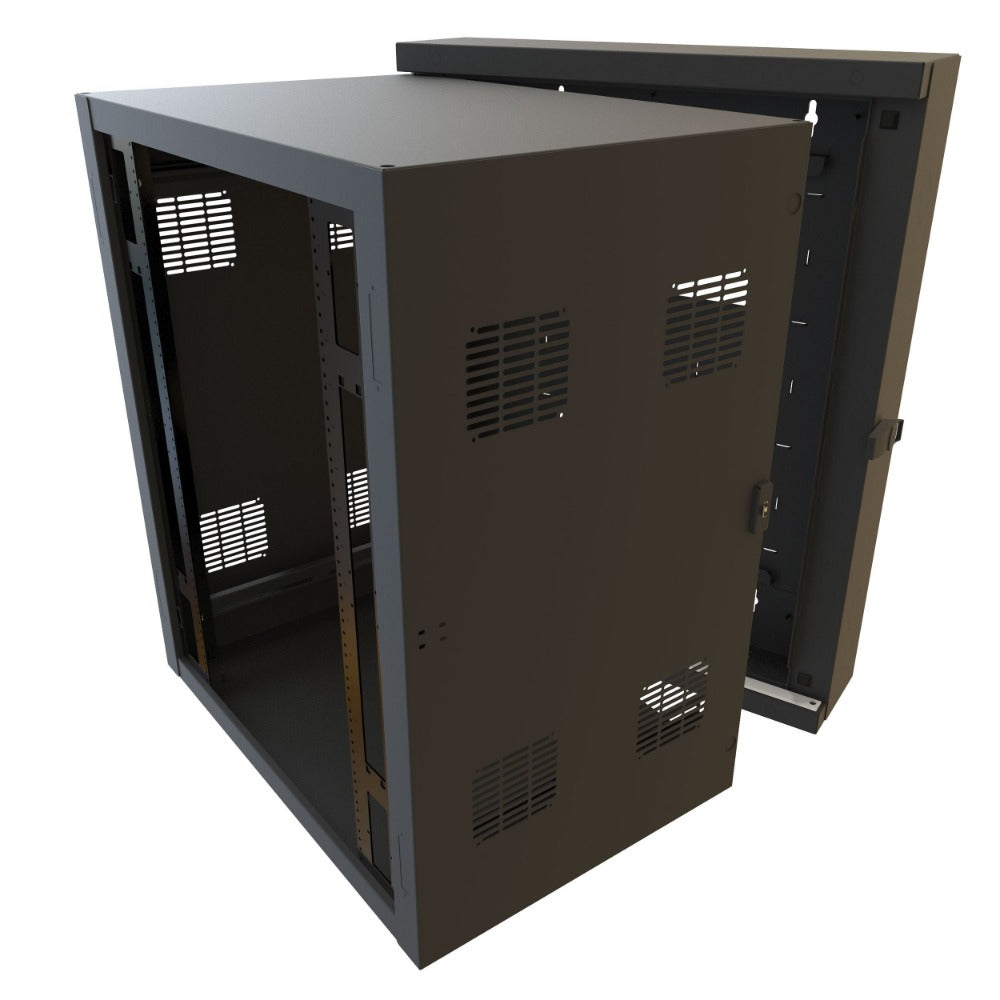

Hammond, HWC Series, Swing-Out Wall Mount Cabinet 24" wide, 27U, 32.5" depth


Hammond, HWC Series, Swing-Out Wall Mount Cabinet

Spec Sheet


  • Available in three (3) heights, two (2) widths and two (2) depths.
  • Center section features:
    • Heavy duty spring-hinge pin for easy installation and removal.
    • Side panel that includes four (4) vents for optional fans.
    • Thirty (30) inch wide version includes cutouts for optional 19" accessories such as cable management located within the mounting rails.
  • Rear section features:
    • The side of the rear section includes 2.50” and 2.00” knockouts.
    • The top and bottom of the rear section include
      • 3.00", 2.00”, 1.38” and 1.12” Conduit knockouts
      • Fan knockouts
    • Generous cable management lances located on the rear section as well as on mounting rails.
    • Heavy duty keyhole for wall mounting.
    • Large openings in rear for cable access.
    • Dedicated bonding points that also provide drill-less mounting of electrical 4x2 utility box.
      • Grounding kit sold separately - GRDKIT01 or GRDKIT04.
  • Optional locking doors include:
    • 64% Perforated
    • Tinted Window
    • Solid
  • Upgrade the cabinet to be IP50 dust-resistant with the HWCF Cabinet Sealing and Filter Kit.
  • If you require UL and CSA Rated Type 12 or Type 4, consider the EN4DH Series.


  • 14-gauge welded rear section; 16-gauge center section and doors.
  • EIA compliant adjustable depth mounting rails.
  • Includes one (1) pair of tapped (10-32) mounting rails.
    • Supports multiple pairs of rails.
  • Grounding lugs located on top and bottom of the door, center and rear sections.
  • UL 2416 Rated for up to 350 lbs (159 kg) static load rating.
  • Rugged sand-textured black powder paint (reduced fingerprints and marks).
  • TAA Compliant.
  • RoHS Compliant.
  • Manufactured in North America.
