Hammond C2 Series, Modular Equipment Cabinet System 86x23x24 45U

Specification Sheet

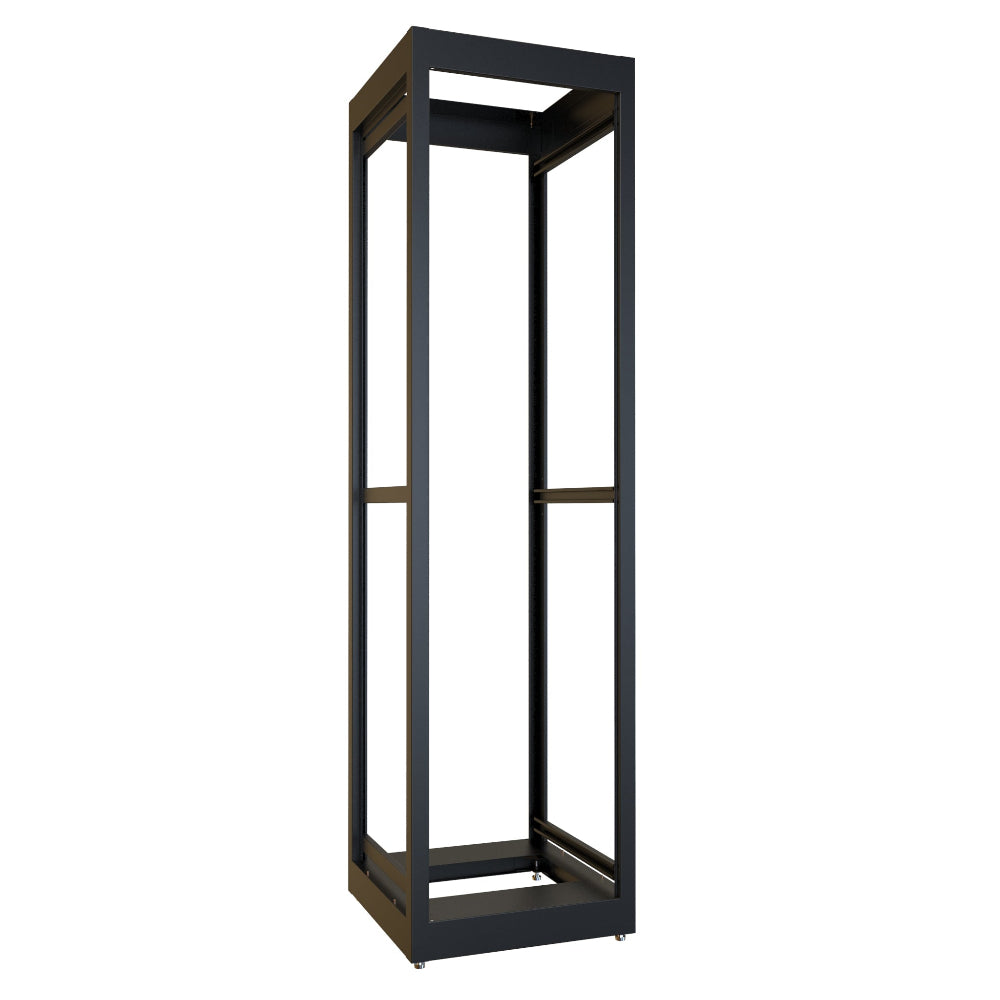

Hammond Modular Rack Cabinet C2 Series

• Welded cabinet frame constructed in 14-gauge steel with 12-gauge steel reinforced corner brackets.
• Cabinet doors and side panels are constructed in 16-gauge steel.
• 19" mounting rails are constructed in 12-gauge steel (square hole punched) or 10-gauge steel (drilled and tapped 10-32).
  • Rails include rack unit indicators and are Zinc-plated to provide superior surface areas for equipment grounding.
  • C-channel struts provide cabinet strength, ease and flexibility to adjust mounting rails.
• 1,500 lbs (680 kg) static load rating.
• Grounding studs are provided on the frame as well as side panels and doors. The front and rear studs on the cabinet frame conform to PET.
• Finished in textured black or RAL 7035 light gray powder coat. Complies with the Greenguard guidelines for indoor air quality.
• TAA-compliant for federal GSA schedule purchases within the USA.
• RoHS Compliant.
• Manufactured in North America within an ISO 9001:2015 certified facility.
