Seismic Server Rack Cabinet C4RR Series

Features

• Available in 42U and 44U mounting heights.
• 24” Width Frame Features:
  • Generous cabling space
  • The cabinet top includes four (4) 3.5” wide cable entry holes.
• 30” Width Frame Features:
  • Mounting rails include cable-tie support and cable pass-through holes.
  • The cabinet top includes four (4) 3.5” wide cable entry holes.
  • Support for vertical cable managers without obstructing mounting rails.
• Available in 31.5", 36" and 42" overall depths.
• C-channel struts provide cabinet strength, ease and flexibility to adjust mounting rails.
• Flush-mounted doors with quarter-turn lock.
• One (1) interchangeable top panel.

Specifications

• Cabinet frame constructed in 14-gauge mild steel with 12-gauge mild steel reinforced corner brackets.
• Cabinet doors and side panels constructed in 16-gauge steel.
• Square hole 19" mounting rails are constructed in 12-gauge steel, include rack unit indicators, and are Zinc-plated to provide superior surface areas for equipment grounding.
• UL Listed 2416 load rated for up to 3,000 lbs (1,360 kg). Static Load tested to 12,000 lbs (5,443 kg).
• Seismic rated up to 1,200 lbs (544 kg) of dynamic load with an Ip factor of 1.5 in accordance with the IBC 2018, CBC 2019, NBC 2015, ASCE 7-16 and ASCE 7-10. Requires a seismic bolt-down kit such as the C4K-Z4 (sold separately).
• Grounding studs are provided on the frame as well as side panels and doors. Front and rear studs on cabinet frame conform to PET.
• Finished in textured RAL9005 black powder paint.
• Meets PCI DSS (Payment Card Industry Data Security Standard) compliance requirements.
• TAA-compliant for GSA Schedule purchases.
• RoHS Compliant.
• Manufactured in North America within an ISO 9001:2015 certified facility.

Included Components

• All configurations include:
  • Welded steel frame with factory-installed nylon levelling feet, ground studs, and mounting points for optional casters.
  • Two (2) pairs of adjustable depth EIA compliant square hole punched mounting rails.
    • Starter pack of CAGKIT1032-25 screws and cage nuts.
  • Two (2) removable side panels (with 1/4 turn latches).
  • One (1) four (4) fan cutout top panel.

• C4RR "D" Cabinet Specific Components include:

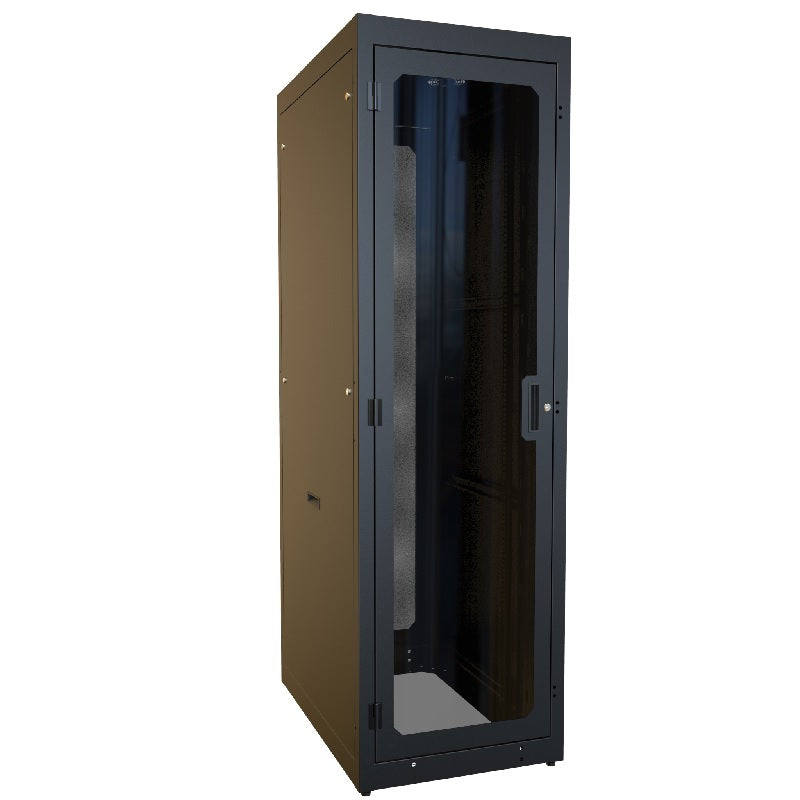

  • One (1) window front door with a quarter-turn lock.
  • One (1) perforated rear door (65% open area vented) with quarter-turn lock.
  • One (1) vertical cable tray with button PDU mounting.

• C4RR "S" Cabinet Specific Components include:
  • One (1) perforated front door (65% open area vented) with quarter-turn lock.
  • One (1) perforated split/barn rear door (65% open area vented) with quarter-turn lock.
  • Two (2) vertical cable trays with button PDU mounting.
