Hammond maintains very high level of stock at their warehouse located in Guelph Ontario. If you don't see stock on our website we can quickly arrange to bring it in or have it drop shipped to you or even your customer’s site.

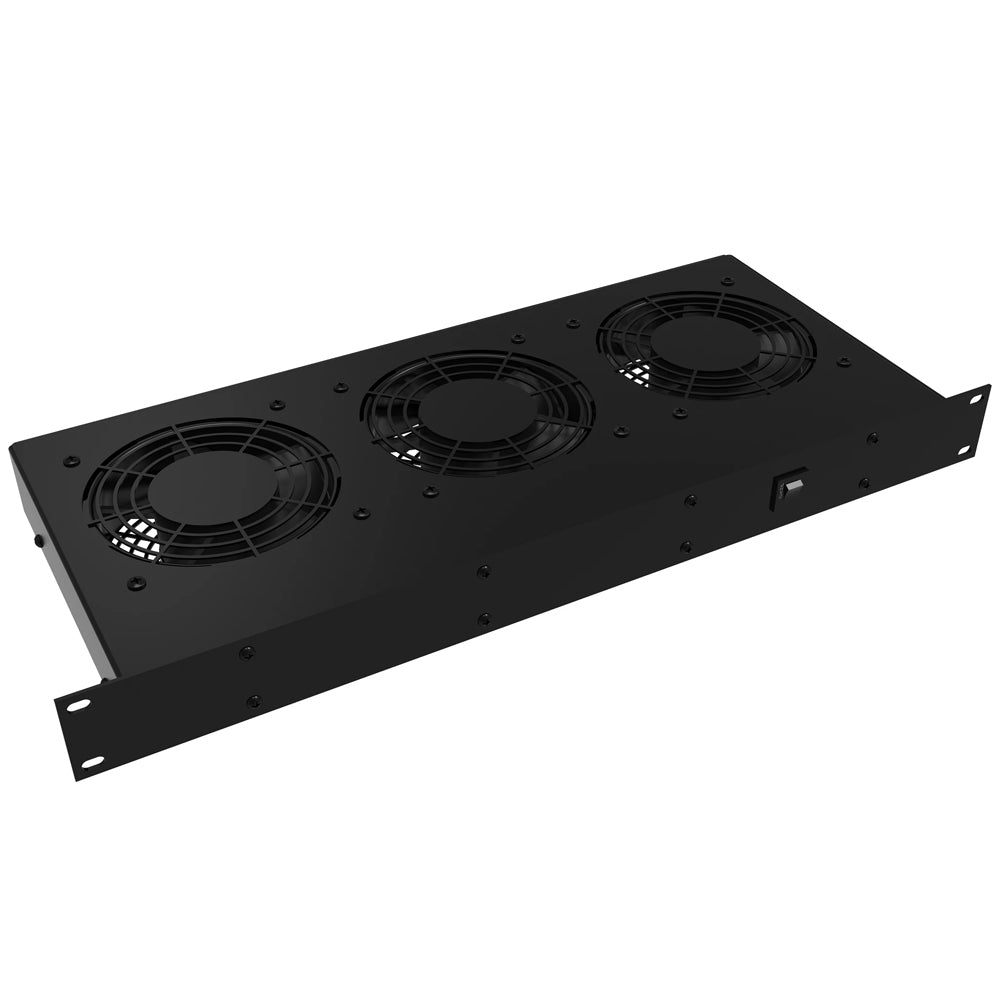

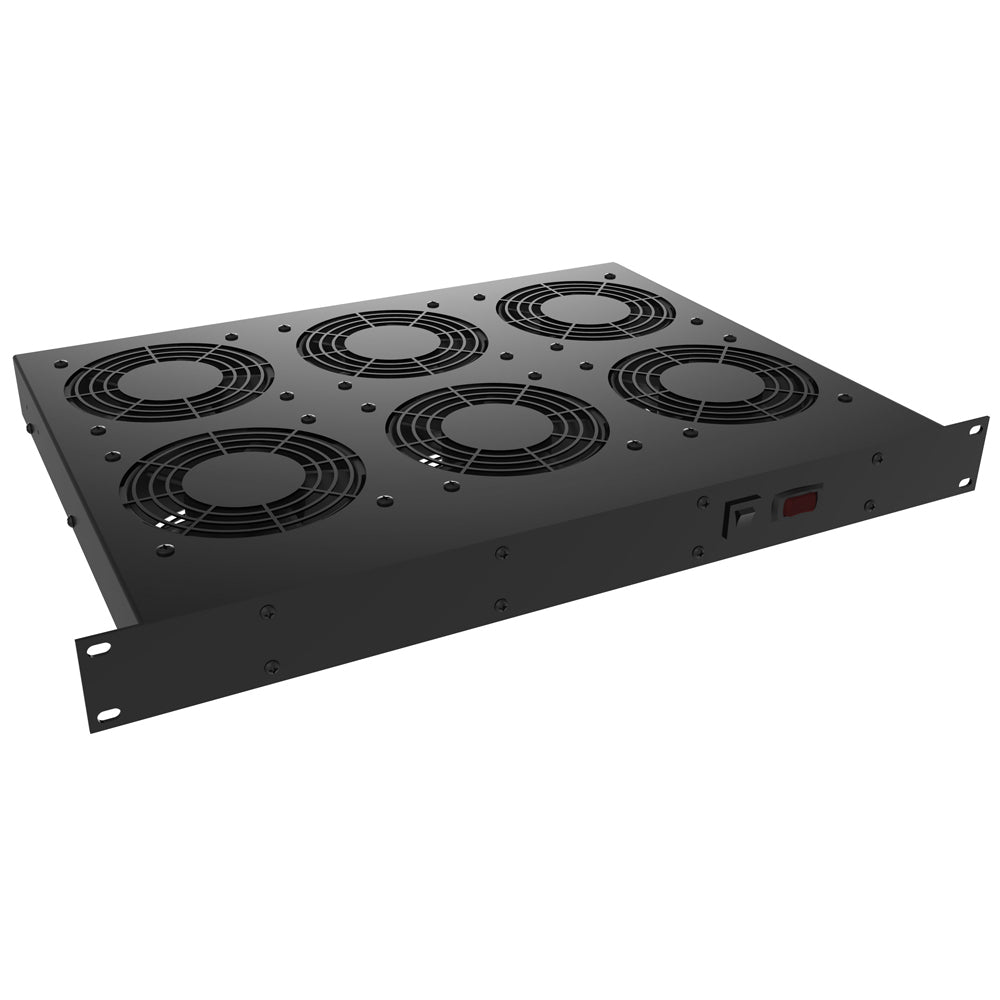

Fan trays can be positioned at the bottom of a rack to force air through the cabinet, at the top to exhaust air out or below specific pieces of equipment for spot cooling
Choice of two operating voltages 115VAC (or 220VAC) - both 50/60 Hz., thermally protected, ball bearing fans
Circuit breaker protected
Low profile 1.75" (1U) of panel space
115VAC versions include a 6' 14/3 STJW cord with modled 3 prong plug (NEMA 5-15P)
220VAC versions include an IEC input receptacle (IEC320-C14)
Integral finger guards above and below fans
Case width is 17"
6 and 9 fan units include an adjustable rear mounting bracket (mounts to rear panel rails) for extra stability
Shipped fully assembled
Available with or without on/off switch
Finished in textured black powder paint
TAA-compliant for GSA Schedule purchases.
RoHS Compliant.
Manufactured in North America.
Hammond maintains very high level of stock at their warehouse located in Guelph Ontario. If you don't see stock on our website we can quickly arrange to get it in or drop shipped.
Fan trays can be positioned at the bottom of a rack to force air through the cabinet, at the top to exhaust air out or below specific pieces of equipment for spot cooling
Choice of two operating voltages 115VAC (or 220VAC) - both 50/60 Hz., thermally protected, ball bearing fans
Circuit breaker protected
Low profile 1.75" (1U) of panel space
115VAC versions include a 6' 14/3 STJW cord with modled 3 prong plug (NEMA 5-15P)
220VAC versions include an IEC input receptacle (IEC320-C14)
Integral finger guards above and below fans
Case width is 17"
6 and 9 fan units include an adjustable rear mounting bracket (mounts to rear panel rails) for extra stability
