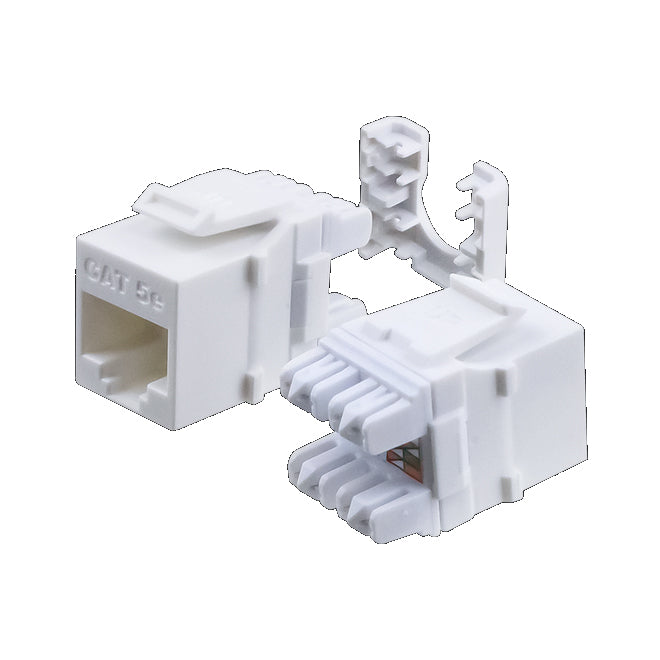

Wavenet Keystone Jack CAT5E, HD Series, UTP, 110, 8P8C,T568A/B, White

HD-5EKSJWH

Wavenet’s Category 5e HDJ SERIES UTP Keystone Jacks have been designed with printed circuit board (PCB) technology providing with maximum performance. The 180‐Degree punch down style Keystone Jacks are tested to meet and exceeds TIA‐568‐C.2 Category 5e 100‐ meter channel performance.

The contact pins designed are made with 50 micro‐inches of gold‐ plated contact pins for maximum bandwidth and performance. Each Keystone Jack has a minimum of 750 cycles of plug insertions.

Features

• Component‐rated performance
• Narrow body design with PCB technology
• Support TIA‐568‐C.2 Category 5e 100-meter channel
• Compatible with all Wavenet faceplates, blank patch pan ls and surface mount boxes
• 110‐Type, 8P8C, RJ‐45, T568A/B WIRING
• 180‐Degree configuration for fast punch down
• Accepts 22‐24 AWG UTP solid wire
• UL listed

Standards & Compliances

• UL Listed
• TAA Complaint
• RoHS
• ANSI/TIA‐568‐C
• ISO/IEC 11801
• IEC 60603‐7‐2
