Hammond CAGKIT Series, 10-32 Mounting Screw and Cage Nut Combo 50pk

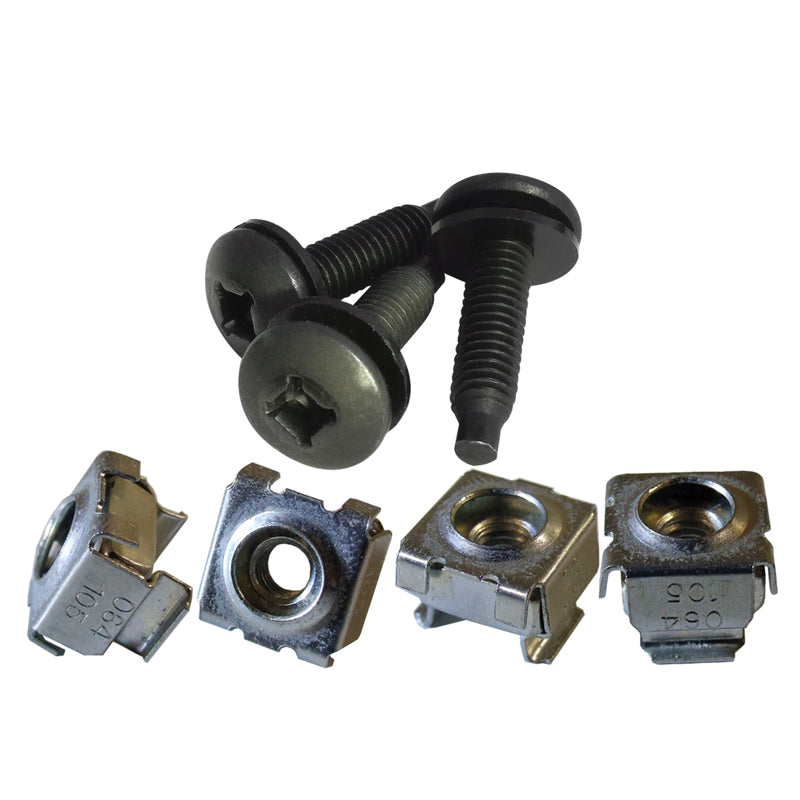

Hammond CAGKIT Series, 10-32 Mounting Screw and Cage Nut Combo

• This combo-pack is available in 10-32, 12-24 or M6 Mounting Screws and Cage Nuts.
• Convenient to have when installing rack-mount equipment in server (square hole) rails.
• The pack includes an equal number of 0.750” length black rack screws and zinc plated cage nuts for square hole punched panel rails.

Specifications

• Quadrex truss oval head screw.
• ø 0.186 Diameter.
• 0.75" Length.
• Machine screw with full dog point.
• UNF-2A Threaded.
• Heat-treated low-carbon steel to ANSI B18.6.3 standard.

Captive flat washer constructed of black Nylon 6/6.

• Outside Diameter: 0.429"-0.439"
• Thickness: 0.030"-0.040"

Cage Nuts

• Constructed of zinc-plated SAE 1050-1065 spring steel.
• 0.375in (9.54mm) square hole punched panel rails.
• Heat-treated through austempering.
• Recommended torque spec 31.4 +/- 20% inch-lbs
• Maximum load rating will vary depending on rail mounting and cabinet load rating.
